HC13R5/HC14R5/HC15R5/HC16R5/HC17R5 14引腳DIP封裝HCMOS振蕩器Connor-Winfield
發布時間：2025-07-02 09:10:44 瀏覽：2463

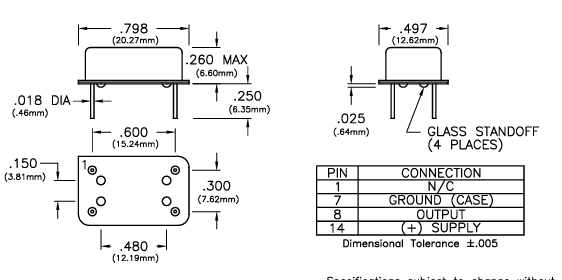

Connor-Winfield Corporation公司生產的14引腳DIP封裝HCMOS振蕩器HC13R5/HC14R5/HC15R5/HC16R5/HC17R5，頻率范圍1kHz–70MHz，輸出波形：HCMOS方波，采用全金屬氣密密封焊接封裝，尺寸20.27mm×7.62mm(長×寬)，引腳間距3.81mm。
| SPECIFICATIONS | HC13R5 | HC14R5 | HC15R5 | HC16R5 | HC17R5 |
| Frequency Range | 1KHz to 70MHz |
| Frequency Stability | ±25ppm | ±50ppm | ±100ppm | ±100ppm | ±100ppm |
(Inclusive of calibration tolerance at 25℃,operating temperoture range,
input voltage change,load change,aging,shock and vibration) |
| Temperature Range | 0 to +70℃ | 0 to +70C | 0 to +70℃ | -40 to +85C | ·-55 to +125℃ |
| Waveform | HCMOS Squarewave |
| Load | 15pF |
| Voltage Voh | 4.5V Minimum |
| Vol | 0.5V Maximum |
| Output Current loh | -4.0mA |
| lol | 4.0mA |
| Duty Cycle | 40/60 Maximum |
| Rise/Fall Time | 6nS |
| Start Up Time | 10mS Maximum |
| Supply Voltage | +5Vdc ±5% |
| Supply Current | 30mA Maximum |
| Package | All metal,hermetically sealed,welded package |
型號參數信息：
| Part Number | Model Family | Product Type | Package | Frequency Stability | Frequency Tolerance | Supply Voltage | Logic Family | Frequency Range | Temperature Range | Keywords |
| HC13R5 | Oscillators | Clock | 14 Pin DIP | +/-20ppm | +/-25ppm | 5.0 Vdc | HCMOS | 1 KHz to 70 MHz | 0 to 70c | Low Cost |
| HC13R5A | Oscillators | Clock | 14 Pin DIP | +/-20ppm | +/-25ppm | 3.3 Vdc | HCMOS | 1 KHz to 1 MHz | 0 to 70c | N/A |
| HC13R6 | Oscillators | Clock | 14 Pin DIP | +/-20ppm | +/-25ppm | 5.0 Vdc | HCMOS | 1 Hz to 1 KHz | 0 to 70c | N/A |
| HC13R8 | Oscillators | Clock | 14 Pin DIP | +/-20ppm | +/-25ppm | 5.0 Vdc | HCMOS | 1 to 80 MHz | 0 to 70c | Low Cost |
| HC13R8G | Oscillators | Clock | 14 Pin DIP | +/-20ppm | +/-25ppm | 5.0 Vdc | HCMOS | 1 to 80 MHz | 0 to 70c | N/A |
| RoHS |
| HC13R8R | Oscillators | Clock | 14 Pin DIP | +/-20ppm | +/-25ppm | 5.0 Vdc | HCMOS | 1 to 100 MHz | 0 to 70c | Low Cost |
| HC145 | Oscillators | Clock | 14 Pin DIP | +/-5.0ppm | +/-10ppm | 5.0 Vdc | HCMOS | 4 to 50 MHz | -10 to 60c | N/A |
| HC145R | Oscillators | Clock | 14 Pin DIP | +/-10ppm | +/-10ppm | 5.0 Vdc | HCMOS | 4 to 50 MHz | -10 to 60c | N/A |
| HC14R5 | Oscillators | Clock | 14 Pin DIP | +/-40ppm | +/-50ppm | 5.0 Vdc | HCMOS | 1 KHz to 70 MHz | 0 to 70c | N/A |
| HC14R5A | Oscillators | Clock | 14 Pin DIP | +/-40ppm | +/-50ppm | 3.3 Vdc | HCMOS | 1 KHz to 1 MHz | 0 to 70c | N/A |
| HC14R6 | Oscillators | Clock | 14 Pin DIP | +/-40ppm | +/-50ppm | 5.0 Vdc | HCMOS | 1 Hz to 1 KHz | 0 to 70c | N/A |
| HC14R8 | Oscillators | Clock | 14 Pin DIP | +/-40ppm | +/-50ppm | 5.0 Vdc | HCMOS | 1 to 80 MHz | -25 to 75c | Low Cost |
| HC14R8G | Oscillators | Clock | 14 Pin DIP | +/-40ppm | +/-50ppm | 5.0 Vdc | HCMOS | 1 to 80 MHz | -25 to 75c | N/A |
| RoHS |
| HC14R8R | Oscillators | Clock | 14 Pin DIP | +/-40ppm | +/-50ppm | 5.0 Vdc | HCMOS | 1 to 100 MHz | 0 to 70c | Low Cost |
| HC15R5 | Oscillators | Clock | 14 Pin DIP | +/-100ppm | +/-100ppm | 5.0 Vdc | HCMOS | 1 KHz to 70 MHz | 0 to 70c | Low Cost |
| HC15R5A | Oscillators | Clock | 14 Pin DIP | +/-100ppm | +/-100ppm | 3.3 Vdc | HCMOS | 1 KHz to 1 MHz | 0 to 70c | N/A |
| HC15R6 | Oscillators | Clock | 14 Pin DIP | +/-100ppm | +/-100ppm | 5.0 Vdc | HCMOS | 1 Hz to 1 KHz | 0 to 70c | N/A |
| HC15R8 | Oscillators | Clock | 14 Pin DIP | +/-100ppm | +/-100ppm | 5.0 Vdc | HCMOS | 1 to 80 MHz | 0 to 70c | Low Cost |
| HC15R8G | Oscillators | Clock | 14 Pin DIP | +/-100ppm | +/-100ppm | 5.0 Vdc | HCMOS | 1 to 80 MHz | 0 to 70c | Low Cost |
| RoHS |
| HC15R8R | Oscillators | Clock | 14 Pin DIP | +/-100ppm | +/-100ppm | 5.0 Vdc | HCMOS | 1 to 100 MHz | 0 to 70c | Low Cost |
| HC16R5 | Oscillators | Clock | 14 Pin DIP | +/-100ppm | +/-100ppm | 5.0 Vdc | HCMOS | 1 KHz to 70 MHz | -40 to 85c | Low Cost |
| HC16R6 | Oscillators | Clock | 14 Pin DIP | +/-100ppm | +/-100ppm | 5.0 Vdc | HCMOS | 1 Hz to 1 KHz | -40 to 85c | N/A |
| HC16R8 | Oscillators | Clock | 14 Pin DIP | +/-100ppm | +/-100ppm | 5.0 Vdc | HCMOS | 1 to 80 MHz | -40 to 85c | Low Cost |
| HC16R8G | Oscillators | Clock | 14 Pin DIP | +/-100ppm | +/-100ppm | 5.0 Vdc | HCMOS | 1 to 80 MHz | -40 to 85c | N/A |
| RoHS |
| HC16R8R | Oscillators | Clock | 14 Pin DIP | +/-100ppm | +/-100ppm | 5.0 Vdc | HCMOS | 1 to 100 MHz | -40 to 85c | Low Cost |
| HC17R5 | Oscillators | Clock | 14 Pin DIP | +/-100ppm | +/-100ppm | 5.0 Vdc | HCMOS | 1 KHz to 70 MHz | -55 to 125c | N/A |
| HC17R5R | Oscillators | Clock | 14 Pin DIP | +/-100ppm | +/-100ppm | 5.0 Vdc | HCMOS | 1 to 70 MHz | -55 to 125c | N/A |
| HC17R5RG | Oscillators | Clock | 14 Pin DIP | +/-100ppm | +/-100ppm | 5.0 Vdc | HCMOS | 1 to 70 MHz | -55 to 125c | N/A |
| RoHS |
| HC17R6 | Oscillators | Clock | 14 Pin DIP | +/-100ppm | +/-100ppm | 5.0 Vdc | HCMOS | 1 Hz to 1 KHz | -55 to 125c | N/A |
| HC1xR8R Series | Oscillators | Clock | 14 Pin DIP | +/-20ppm to +/-50ppm | +/-25ppm to +/-100ppm | 5.0 Vdc | HCMOS | 1 to 100 MHz | 0 to 70c | Pure Spectrum |
| RoHS 5/6 |
| JHC13R8R | Oscillators | Clock | SM 14 Pin DIP | +/-20ppm | +/-25ppm | 5.0 Vdc | HCMOS | 1 to 70 MHz | 0 to 70c | N/A |
| JHC14R8R | Oscillators | Clock | SM 14 Pin DIP | +/-40ppm | +/-50ppm | 5.0 Vdc | HCMOS | 1 to 70 MHz | 0 to 70c | N/A |
| JHC15R8R | Oscillators | Clock | SM 14 Pin DIP | +/-100ppm | +/-100ppm | 5.0 Vdc | HCMOS | 1 to 70 MHz | 0 to 70c | Low Cost |
| JHC15R8RC | Oscillators | Clock | SM 14 Pin DIP | +/-100ppm | +/-100ppm | 5.0 Vdc | HCMOS | 1 to 70 MHz | 0 to 70c | N/A |
| JHC16R8R | Oscillators | Clock | SM 14 Pin DIP | +/-100ppm | +/-100ppm | 5.0 Vdc | HCMOS | 1 to 70 MHz | -40 to 85c | N/A |
更多Connor-Winfield晶振產品可咨詢立維創展。
