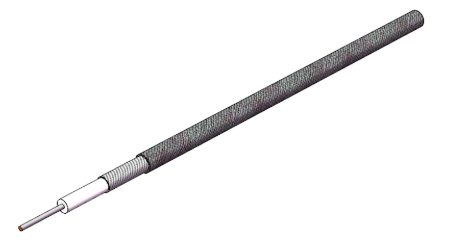

Center Conductor Diameter

0.0113 in

Dielectric Diameter

0.0340 in

Outer Conductor Diameter

0.0470 in

MATERIALS

Center Conductor Material

SPC

Dielectric Material

PTFE

Outer Conductor Material

Copper Foil, Copper-Tin Composite

RoHS Compliant

Yes

MECHANICAL CHARACTERISTICS

Minimum Temperature

?55 °C

Maximum Temperature

+200 °C

Inside Bend Radius (Minimum)

1.250 in

Weight

0.47 lbs

per 100 ft

ELECTRICAL CHARACTERISTICS

Nominal Impedance

50.0 ?

Nominal Impedance Margin

±1.5 ?

Velocity of Propagation

70.00%

Shielding Effectiveness

>120 db

Voltage Withstanding

2000 VRMS

@ 60 Hz

Continuous Working Voltage

800 VRMS max

Maximum Operating Frequency

116 GHz

Attenuation

FREQUENCY

DB / 100 FT TYPICAL

0.5 GHz

23 db

1.0 GHz

32.9 db

5.0 GHz

76.9 db

10.0 GHz

112.2 db

18.0 GHz

156.1 db

26.5 GHz

195 db

40.0 GHz

248.5 db

50.0 GHz

284.2 db

65.0 GHz

333.6 db

90.0 GHz

408.8 db

Power

FREQUENCY

WATTS CW @ 20 °C (MAX)

0.5 GHz

80 W

1.0 GHz

55 W

5.0 GHz

25 W

10.0 GHz

15 W

18.0 GHz

11 W

26.5 GHz

10W

40.0 GHz

8W

50.0 GHz

7 W

65.0 GHz

6 W

90.0 GHz

5 W
